Lugar de origem: | FEITO NA CHINA |
Marca: | Infinity Machine |
Certificação: | ISO |
Número do modelo: | IB1151 |
Quantidade de ordem mínima: | 1 conjunto |
---|---|
Preço: | negociável |
Detalhes da embalagem: | Caixa de madeira de exportação padrão do testador de queda do copo com manual de operação e vídeo de |
Tempo de entrega: | Máquina de teste de impacto de queda: enviado em 15 dias após o pagamento |
Termos de pagamento: | T/T. |
Habilidade da fonte: | Máquina de teste de queda do copo: 50 conjuntos por mês |
Montante do ensaio: | 2 grupos, 3 grupos, 4 grupos | Largura de queda: | 350mm |
---|---|---|---|
altura de gota: | 500 mm ou 1000 mm | Velocidade de teste: | 5 a 20 vezes/min |
Ciclo de ensaio: | 1~999,999 vezes (pode ser definido) | Dimensão: | 1300x1200x1500 mm |
Peso: | 370 kg | Fonte de energia: | AC220V 50Hz 5A ou especificado pelo utilizador |
Destacar: | smartphone drop testing machine,mobile device tumble tester,free fall test machine |

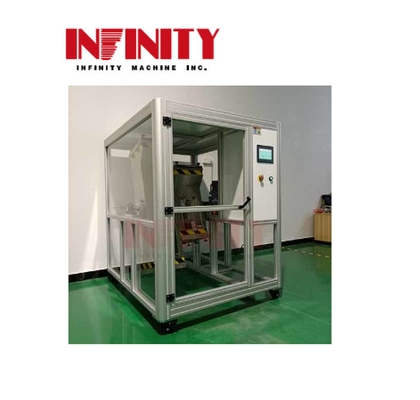

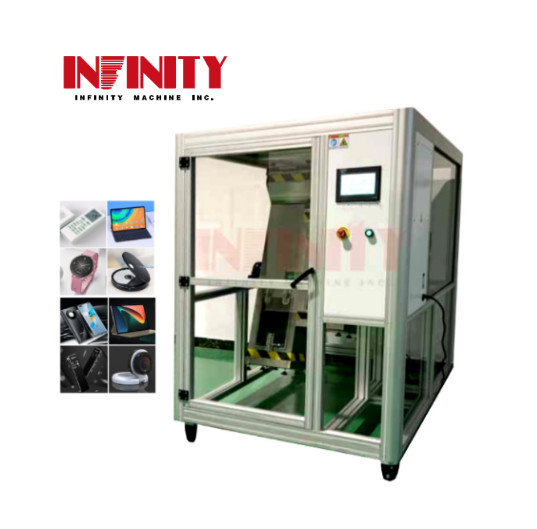

Rolling tumbler drop tester is suitable for continuous rotation drop test of small consumer electronic products such as:

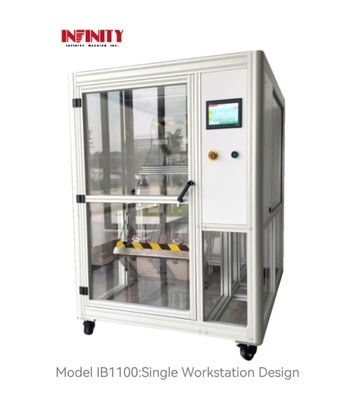

Available configurations include single tumbler, double barrels, three tumbler, or four barrels models. Custom tumble drop impact testing equipment can be manufactured according to your requirements.
Our tumble test machine complies with:
Products | Tumble Test Machine |
---|---|
Model | IB1151 |
Test amount | 2 set, 3 set or 4 set |
Drop width | 350mm |
Drop height | 500mm, 1000mm or customized |
Drop bottom plate material | Steel, hardwood or specific by user |
Test speed | 5~20 times /min |
Test cycle | 1~999,999times (can set) |
Safety enclosure | Yes |
Safety protective door | Yes |
Safety protection device | Yes |
Dimension (WxDxH) | 1300x1200x1500mm |
Weight | 165kg |
Power Supply | AC220V 50Hz, AC110V 60Hz or specific by user |
We are committed to providing exceptional technical support and services to ensure rigorous testing and quality control:
Our specialist team provides high-quality support for all test machines. Contact us with any questions or assistance needs.
Test machines are packed in appropriate cardboard boxes and/or crates. Standard shipping methods include:
Special shipping requirements should be discussed prior to purchase. Customers are responsible for all import duties, taxes, and fees. We provide all necessary documentation for customs clearance.
1. How to choose the most suitable Compression testing machine?
Our professional team will provide recommendations based on your test requirements and specifications.
2. What's the delivery term?
We typically maintain factory stock. For custom orders, delivery time is 15-20 working days after deposit receipt. Expedited arrangements are available for urgent needs.
3. Do you accept customization service?
Yes, we offer both standard and customized machines. We welcome your specific requirements.
4. Can we visit your factory before order?
Yes, we warmly welcome factory visits.
5. Do you have customers in our country before?
Our testing machines have been sold to over 30 countries including USA, Canada, Russia, UK, Italy, Germany, EU nations, India, Pakistan, Philippines, Singapore, Thailand, Vietnam, Iran, Brazil, and others.
6. How about your warranty?
Standard warranty is one year, including technical support and parts replacement. On-site engineer service is available when necessary.
7. How about the packing for machine?
Machines are packed in standard export wooden cartons, proven safe for international shipping by sea or air.
8. How to install and use the product?
Products ship with English operating instructions and instructional videos.
